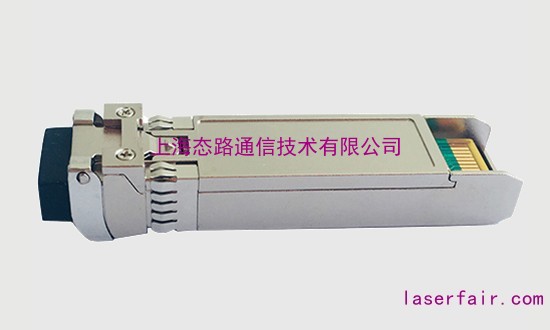

TARLUZ SFP+ optical transceivers are widely used in 10G Datacom and Telecom network connection. The SFP+ modules complied with IEEE802.3ae, SFF-8472 and SFF-8431, The applications including Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10Gbase-SW/SR/LR/ER, 1000 base-SX Ethernet, SDH/SONET.
產品特點：
Compliant to SFP+ Electrical MSA SFF-8431
Compliant to SFP+ Mechanical MSA SFF-8432
Multi rate of up to 11.3Gbps
10G Ethernet compliance or SDH/SONET
Transmission distance up to 100km (SM fiber)
Low power consumption
產品應用：
10Gbase-SR, LR, ER, ZR, ZX at 10.31 / 11.1Gbps
SDH/SONET
1/10G and Multirate
10Gbase-LW at 9.95Gbps
1000 base-LX Ethernet
8XFC at 8.5Gbps
Other optical links
訂購信息：
Type | Distance | Data Rate | Wavelength | Fiber | Interface | Temp. |
TL-SFP-10G85-03 | 300m | 10G | 850nm | MMF | Duplex LC | 0 ~ 70°C |
| TL-SFP-10G13-2M | 220m | 10G | 1310nm | MMF | Duplex LC | 0 ~ 70°C |
TL-SFP-10G13-02 | 2km | 10G | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-10G13-10 | 10km | 10G | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-10G13-20 | 20km | 10G | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
| TL-SFP-10G13-40 | 40km | 10G | 1310nm | SMF | Duplex LC | 0 ~ 70°C |
| TL-SFP-10G15-40 | 40km | 10G | 1550nm | SMF | Duplex LC | 0 ~ 70°C |
| TL-SFP-10G15-80 | 80km | 10G | 1550nm | SMF | Duplex LC | 0 ~ 70°C |
