原材料拋光 - 硒化鋅透鏡
規 格
材料: 硒化鋅
波長: 10.6um
參數: 2.4028@10.6um
直徑公差: +0.0 / -0.1mm
近軸焦距: ±2%
中心偏差: <3 arc minutes
通光口徑: >80%
表面圖:λ/2@632.8nm
表面質量: 20/10劃痕和點
拋光鏡片
Ge 平凸透鏡
|
Part No. |
Dia(inch) |
EFL(inch) |
R1(mm) |
Tc(mm) |
Te(mm) |
|
ZN0615 |
0.6 |
1.5 |
53.45 |
2.9 |
2 |
|
ZN0620 |
0.6 |
2 |
71.26 |
2.9 |
2 |
|
ZN0715 |
0.75 |
1.5 |
53.45 |
2.9 |
2 |
|
ZN0720 |
0.75 |
2 |
71.26 |
2.9 |
2 |
|
ZN0725 |
0.75 |
2.5 |
89.08 |
2.9 |
2 |
|
ZN1015 |
1 |
1.5 |
53.45 |
4.5 |
3 |
|
ZN1020 |
1 |
2 |
71.26 |
4.1 |
3 |
|
ZN1025 |
1 |
2.5 |
89.08 |
3.9 |
3 |
|
ZN1030 |
1 |
3 |
107.93 |
3.8 |
3 |
|
ZN1115 |
1.1 |
1.5 |
53.45 |
4.8 |
3 |
|
ZN1120 |
1.1 |
2 |
71.26 |
4.4 |
3 |
|
ZN1125 |
1.1 |
2.5 |
89.08 |
4.1 |
3 |
|
ZN1130 |
1.1 |
3 |
107.93 |
3.9 |
3 |
|
ZN1150 |
1.1 |
5 |
178.15 |
3.5 |
3 |
|
ZN1525 |
1.5 |
2.5 |
89.08 |
8 |
6 |
|
ZN1530 |
1.5 |
3 |
107.93 |
7.7 |
6 |
|
ZN1550 |
1.5 |
5 |
178.15 |
7 |
6 |
|
ZN1575 |
1.5 |
7.5 |
267.23 |
6.7 |
6 |
|
ZN2050 |
2 |
5 |
178.15 |
9.8 |
8 |
|
ZN2075 |
2 |
7.5 |
267.23 |
9.2 |
8 |
|
ZN20100 |
2 |
10 |
356.31 |
8.9 |
8 |
原材料拋光 - 鍺透鏡
規 格
材料: 鍺
波長: 10.6um
參數: 4.0028@10.6um
直徑公差: +0.0 / -0.1mm
近軸焦距: ±2%
中心偏差: <3 arc minutes
通光孔徑: >80%
表面圖: λ/2@632.8nm
表面質量: 60/40 for Ge / GaAs
拋光鏡片

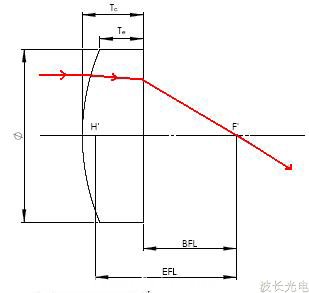

Ge 平凸透鏡
|
Part No. |
Dia(inch) |
EFL(inch) |
R1(mm) |
Tc(mm) |
Te(mm) |
|
GE1015 |
1 |
1.5 |
114.4 |
3.7 |
3 |
|
GE1020 |
1 |
2 |
152.54 |
3.5 |
3 |
|
GE1025 |
1 |
2.5 |
190.68 |
3.4 |
3 |
|
GE1030 |
1 |
3 |
228.81 |
3.3 |
3 |
|
GE1115 |
1.1 |
1.5 |
114.4 |
3.8 |
3 |
|
GE1120 |
1.1 |
2 |
152.54 |
3.6 |
3 |
|
GE1125 |
1.1 |
2.5 |
190.68 |
3.5 |
3 |
|
GE1130 |
1.1 |
3 |
228.81 |
3.4 |
3 |
|
GE1150 |
1.1 |
5 |
381.35 |
3.3 |
3 |
|
GE1520 |
1.5 |
2 |
152.54 |
7.2 |
6 |
|
GE1525 |
1.5 |
2.5 |
190.68 |
6.9 |
6 |
|
GE1530 |
1.5 |
3 |
228.81 |
6.8 |
6 |
|
GE1550 |
1.5 |
5 |
381.35 |
6.5 |
6 |
|
GE1575 |
1.5 |
7.5 |
572.03 |
6.3 |
6 |
|
GE2050 |
2 |
5 |
381.35 |
8.8 |
8 |
|
GE2075 |
2 |
7.5 |
572.03 |
8.6 |
8 |
|
GE20100 |
2 |
10 |
762.71 |
8.4 |
8 |
原材料拋光 - 砷化鎵透鏡
規 格
材料:砷化鎵
波長: 10.6um
參數: 3.2743@10.6um
直徑公差: +0.0 / -0.1mm
近軸焦距: ±2%
中心偏差: <3 arc minutes
通光孔徑: >80%
表面圖: λ/2@632.8nm
表面質量: 60/40 for Ge / GaAs
拋光鏡片
GaAs 平凸透鏡
|
Part No. |
Dia(inch) |
EFL(inch) |
R1(mm) |
Tc(mm) |
Te(mm) |
|
GA1015 |
1 |
1.5 |
86.65 |
2.9 |
2 |
|
GA1020 |
1 |
2 |
115.53 |
2.7 |
2 |
|
GA1025 |
1 |
2.5 |
144.42 |
2.6 |
2 |
|
GA1030 |
1 |
3 |
173.3 |
2.5 |
2 |
|
GA1115 |
1.1 |
1.5 |
86.65 |
4.1 |
3 |
|
GA1120 |
1.1 |
2 |
115.53 |
3.9 |
3 |
|
GA1125 |
1.1 |
2.5 |
144.42 |
3.7 |
3 |
|
GA1130 |
1.1 |
3 |
173.3 |
3.6 |
3 |
|
GA1150 |
1.1 |
5 |
288.83 |
3.3 |
3 |
|
GA1520 |
1.5 |
2 |
115.53 |
4.6 |
3 |
|
GA1525 |
1.5 |
2.5 |
144.42 |
4.3 |
3 |
|
GA1530 |
1.5 |
3 |
173.3 |
4 |
3 |
|
GA1550 |
1.5 |
5 |
288.83 |
3.6 |
3 |
|
GA1575 |
1.5 |
7.5 |
433.25 |
3.4 |
3 |
|
GA2050 |
2 |
5 |
288.83 |
7.1 |
6 |
|
GA2075 |
2 |
7.5 |
433.25 |
6.7 |
6 |
|
GA20100 |
2 |
10 |
577.67 |
6.5 |
6 |
原材料拋光 - 硅平面鏡
規格
材料:硅
直徑公差: +0.0 / -0.1mm
表面: plano / plano
中心偏差: <3 arc minutes
通光孔徑: >85%
表面圖: λ/2@632.8nm
表面質量: 20-10 scratch and dig
面1 : 拋光
面2: 細磨
保護性倒邊
拋光硅片
|
Part No. |
D(inch) |
T(inch) |
|
SM0730 |
0.75 |
0.12 |
|
SM1030 |
1 |
0.12 |
|
SM1140 |
1.1 |
0.16 |
|
SM1540 |
1.5 |
0.16 |
|
SM1560 |
1.5 |
0.236 |
|
SM2020 |
2 |
0.2 |
|
SM2038 |
2 |
0.375 |
|
SM3025 |
3 |
0.25 |
|
SM3038 |
3 |
0.375 |
